Hwashi 7-Axis CNC Double Heads Sheet Metal Spot Welding Machine with Medium Frequency Inverter Power Supply

7-Axis CNC Control Sheet Metal Spot Welding Machine

Double Heads Welding Automatic Sheet Metal Welder

Medium Frequency Inverter Power Supply CNC Sheet Metal Welder

Plaats van herkomst:

China

Merknaam:

HWASHI

Certificering:

CE/CCC/ISO

Contacteer ons

Verzoek om een Citaat

Productdetails

Productnaam:

Hwashi CNC Seven 7axis Double Heads Plaat Metal Spot Weldinq Machine, Automatische Plaat Metalwelder

Garantie:

12 maanden

Voorwaarde:

Nieuw

Levensduur:

8-10 jaar

Vermogen (kW):

160kvax2

Frequentie:

1000Hz

Max. Dikte:

2+2 mm

Betaling & het Verschepen Termijnen

Min. bestelaantal

1 set

Prijs

Onderhandelbaar

Verpakking Details

Zeewaardig houten pakket

Levertijd

7-30 werkdagen nadat uw betaling is ontvangen

Betalingscondities

L/C, T/T

Levering vermogen

50 sets per maand

Verwante Producten

Video

HWASHI Automatic Spot Welding Machine met 34000A Max Current 1200mm verstelbare breedte en digitale aanraakschermbesturing voor plaatmetaal

Krijg Beste Prijs

Video

Hwashi CNC Seven 7axis Double Heads Sheet Metal Welder Automatic Spot Welding Machine voor Squatrack

Krijg Beste Prijs

Video

Hwashi Security Roestvrij staal plaat deurplaat Multi-Point Automatische mobiele type Spot Lasmachine, Plaat metalen Lasmachine

Krijg Beste Prijs

Video

Hwashi nieuwste automatische deurplaat metalen bruggen type omvormer lasmachine

Krijg Beste Prijs

Contacteer ons

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Contact nu

Productomschrijving

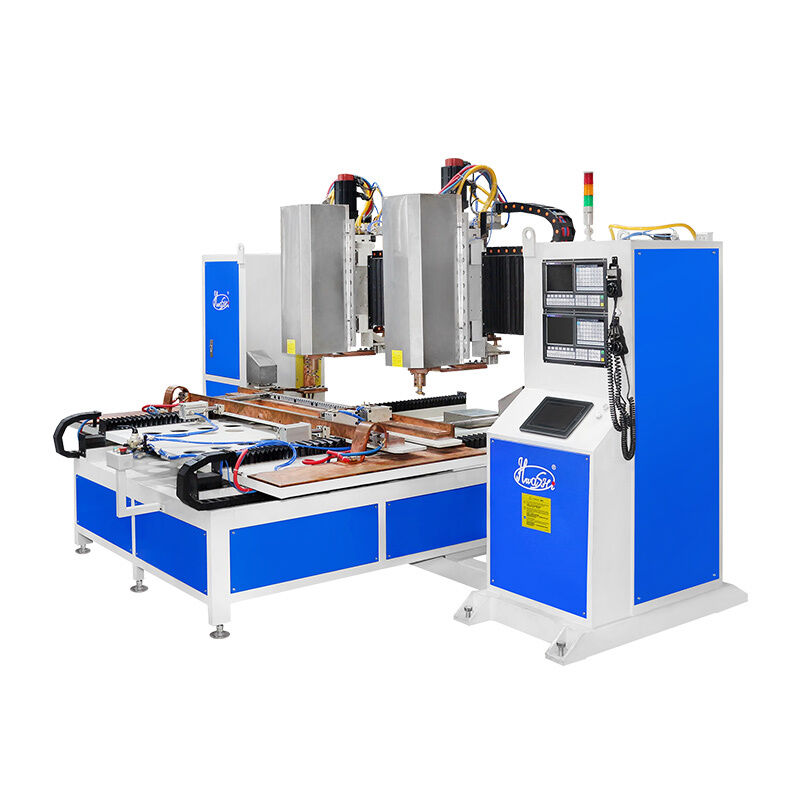

Hwashi CNC Seven 7-Axis Double Heads Sheet Metal Spot Welding Machine

This automatic sheet metal welder for squat racks is custom-engineered to meet your specific welding requirements and product specifications.

Advanced CNC Control System

The machine features two independent welding mechanisms controlled by a sophisticated CNC servo system. This includes X-direction mobile welding and Y-direction table movement, enabling precise welding at various positions. The welding mechanisms also provide Z-direction lifting and A-direction rotation capabilities, with the CNC system coordinating all seven axes for optimal positioning and welding performance.

Key Features & Benefits

Medium frequency inverter power supply for consistent welding performance
Fully automated welding production with programmed position control
Operator only required for product loading and unloading
Significantly improved product quality and production efficiency
Reduced production costs and elimination of manual welding inconsistencies
High automation degree with reliable, repeatable results

Industrial Applications

Primarily used for welding low-carbon steel, low-alloy steel, stainless steel, coated steel, plate and round steel that cannot be efficiently welded by standard fixed welders. Widely applied across multiple industries including automotive manufacturing, civil sheet metal fabrication, security doors, cabinet production, and household appliances.

Customized Engineering Solutions

We provide comprehensive customized services tailored to your specific welding requirements. Our engineering team will collaborate with you to analyze your samples or technical drawings and develop optimal technical proposals for your application.

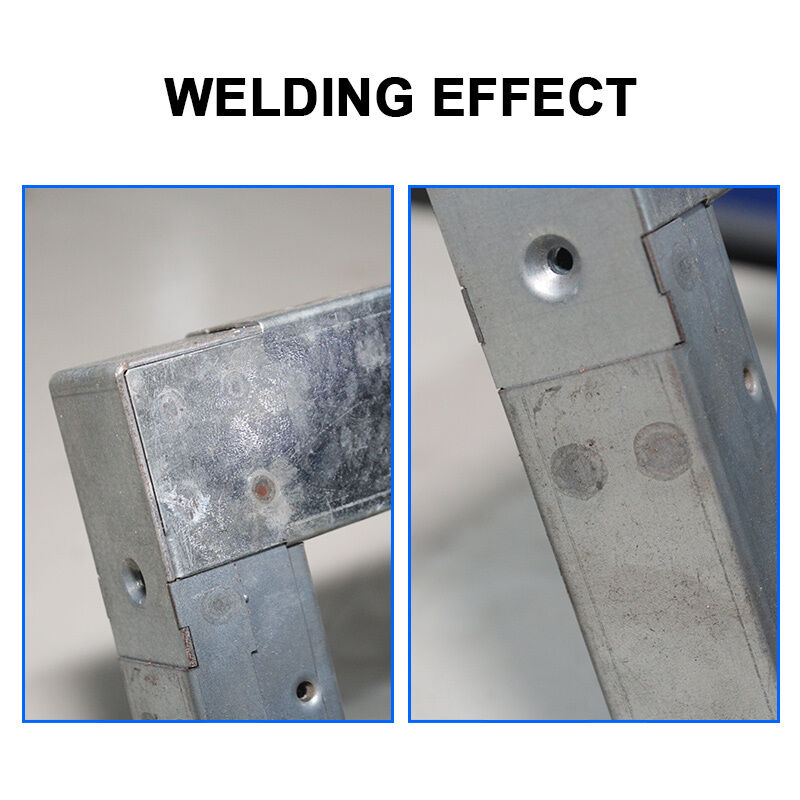

Welding Quality & Performance

Produces firm solder joints with consistent welding effects and reliable performance across all applications.

Technical Specifications

Item	Parameter
Rated Power	120KVA * 2
Duty Cycle	50%
Frequency	1000Hz
Effective Welding Length	1200mm
Effective Welding Width	2200mm
Welding Driving Power	Servo System
Maximum Moving Speed	500mm/s
Machine Dimension	L3800mm * W2600mm
Rated Air Pressure	0.6MPa
Water Temperature	10-25°C
