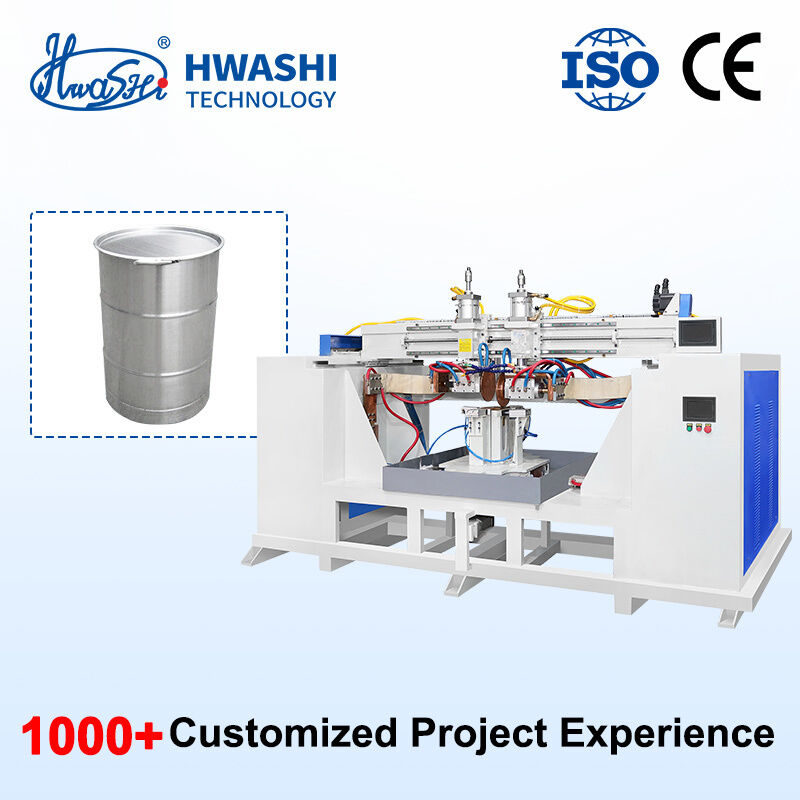

Seam Welding Machine for Oil Drum and Drum Lid Manufacturing
Hwashi Automatic Roll-Round Forming and Welding Machine For Metal Mesh Filter Cartridge
This specialized seam welding machine is exclusively developed for the mass production of metal oil drums and round drum lids, integrating high efficiency, stability, and precision to meet the strict requirements of the metal packaging industry.
Advanced Welding Technology
Focused on the welding of oil drum bodies, drum bottoms, and round drum lids, the machine adopts advanced roller welding technology, which ensures uniform welding seams, high bonding strength, and excellent airtightness—critical for preventing leakage of oil and other liquid contents. The rolling electrode design enables continuous and smooth welding, avoiding defects such as spatter, porosity, and uneven seams, thus improving the qualified rate of finished products.
Intelligent Control System
Equipped with an intelligent control system, the machine allows precise adjustment of welding current, pressure, and speed, adapting to different thicknesses of metal sheets (commonly used for oil drums and drum lids) and ensuring consistent welding performance in long-term continuous operation. It supports automatic feeding and positioning, greatly reducing labor intensity, improving production efficiency, and realizing standardized mass production of oil drums and drum lids.
Woven Wire Mesh Filter Cartridge Applications
Woven wire mesh filter cartridge is widely used in petroleum, chemistry, metallurgy, machine, medicine, automobile industries for distillation, absorption, evaporation and filtration processes, so as to eliminate the impurities and foam mixed in the gas and liquid.
- Filtration of air: air filters, vacuum filters, filtration of corrosive gases, etc.
- Filtration of liquid: ceramics polluted water cleaning, beverage, disposal of sewage water, filtration of corrosive liquids, beer brewing filter, etc.
- Filtration of solid: glass, coal, food processing industry, cosmetics, fluidised beds, etc.
- Filtration of oil: oil refining, hydraulic oil, oilfield pipelines, etc.
- Filtration of other fields: textile industry, insulation industry, automotive industry, chemical industry, metallurgy, medicine making, electronic field, etc.
Technical Specifications
| Input power | 380V, 2 Phase, 50/60Hz |
| Rated capacity | 50KVA |
| Welding capacity (mild steel plate) | 1.0mm+1.0mm |
| Cooling water flow | 15L/min |
| Maximum electrode pressure | 3900N |
| Electrode travel | 60mm |
| Temporary load rate | 40% |
| Package volume | 1200*1100*1900mm |
| Weight | 750kg |
