HWASHI Automatic Gantry Style Wire Mesh Welding Machine with 10 Welding Heads 40000A Output Current and Automatic Wire Filling System

HWASHI Automatic Gantry Style Wire Mesh Welding Machine with 10 Welding Heads 40000A Output Current and Automatic Wire Filling System

10 Welding Heads Wire Mesh Welding Machine

40000A Output Current Automatic Spot Welding Machine

Automatic Wire Filling System Gantry Style Welding Machine

Plaats van herkomst:

China

Merknaam:

Hwashi

Certificering:

CE

Contacteer ons

Verzoek om een Citaat
HWASHI Automatic Gantry Style Wire Mesh Welding Machine with 10 Welding Heads 40000A Output Current and Automatic Wire Filling System
HWASHI Automatic Gantry Style Wire Mesh Welding Machine with 10 Welding Heads 40000A Output Current and Automatic Wire Filling System HWASHI Automatic Gantry Style Wire Mesh Welding Machine with 10 Welding Heads 40000A Output Current and Automatic Wire Filling System
Productdetails
Lassentemperatuur:
Hoog
Gebruik:
Vervaardiging van bulkcontainers
ingangsstroom:
300A
Standaard:
CE/CCC/ISO
Koelsysteem:
Waterkoeling
Lassnelheid:
10-15 kooien per uur
Uitgangsstroom:
40000A
Lassenkwaliteit:
Hoog
Betaling & het Verschepen Termijnen
Min. bestelaantal
1
Prijs
Onderhandelbaar
Verpakking Details
Zeewaardig houten pakket
Levertijd
7-30 werkdagen nadat uw betaling is ontvangen
Betalingscondities
T/T,L/C
Levering vermogen
10 sets/maand
Verwante Producten
Goede prijs High Speed Welding PLC Control Automatic Wire Tube Condenser Production Line Machine en Las- en Buigmachine online Video

High Speed Welding PLC Control Automatic Wire Tube Condenser Production Line Machine en Las- en Buigmachine

Krijg Beste Prijs
Goede prijs Automatische gaaslassen met een maximale bedradingssnelheid van 200 mm/s, 2D-buiging van de draadgreep en 1 jaar garantie online Video

Automatische gaaslassen met een maximale bedradingssnelheid van 200 mm/s, 2D-buiging van de draadgreep en 1 jaar garantie

Krijg Beste Prijs
Goede prijs Automatische draadgaaslasmachine met driefasige MF DC-voeding 1200 mm lasbreedte en 3000 mm lengte online Video

Automatische draadgaaslasmachine met driefasige MF DC-voeding 1200 mm lasbreedte en 3000 mm lengte

Krijg Beste Prijs
Goede prijs Automatische walsweismachine met 200 mm/s maximale bedradingssnelheid 2D draadhandvat buigen en 1 jaar garantie online Video

Automatische walsweismachine met 200 mm/s maximale bedradingssnelheid 2D draadhandvat buigen en 1 jaar garantie

Krijg Beste Prijs
Contacteer ons
+86-13380655800
export_trade@hwashi.com
86-752-3528326
Contact nu
Productomschrijving

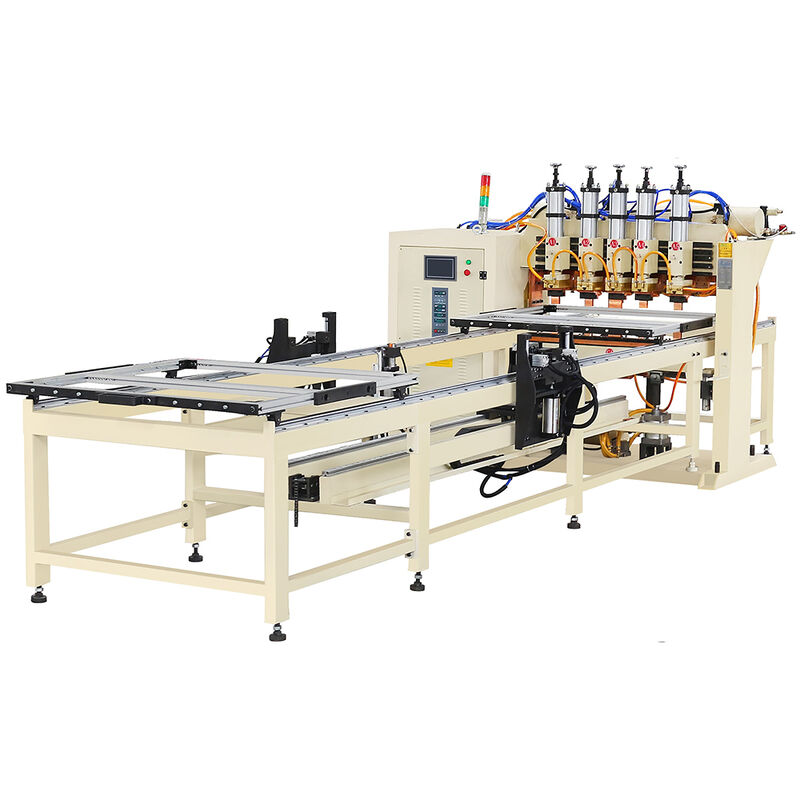

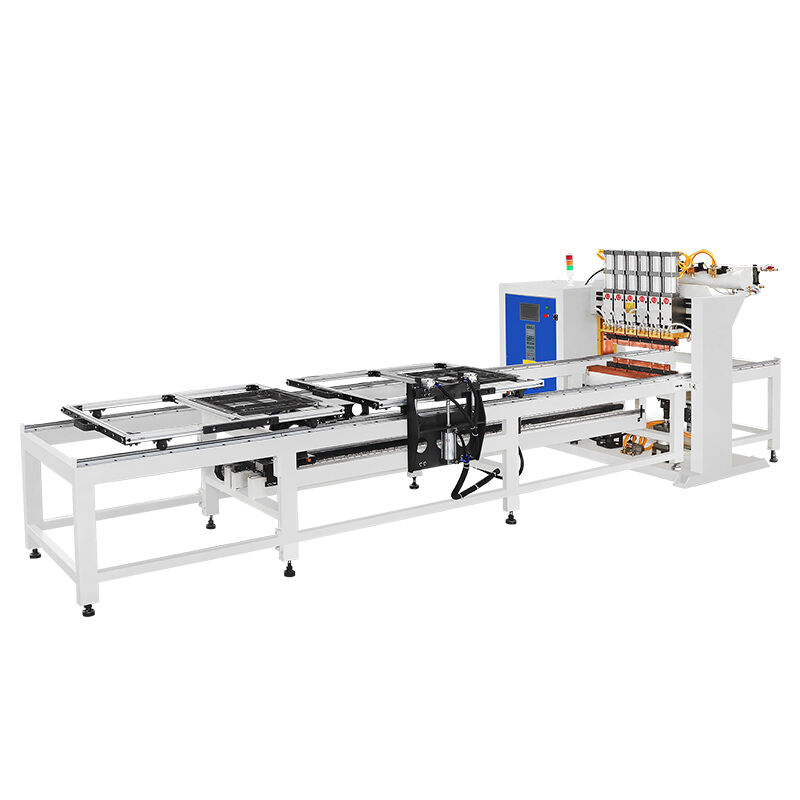

HWASHI Automatic Gantry Style Multi Head Spot Row Welding Machine
Designed for wire mesh applications with 2-8mm wire diameter, this H-type multi-head automatic welding machine features ten electrodes and comprehensive automation systems for efficient refrigerator wire shelf production.
Machine Overview
The HWASHI welding equipment is an H-type wire mesh multi-head automatic welding machine equipped with ten electrodes and automatic feeding system. This fully automated solution automatically drops wire to the fixture, executes feeding and welding operations, and features one-way double-layer feeding that moves forward and backward automatically with customizable welding distance settings.
  • Welding Method: One-way double-layer automatic stepping feeding with 10 welding heads
  • Effective Welding Width: 1200mm
  • Effective Welding Length: 1000mm
  • Ideal for batch production of wire mesh with multiple-point welding
System Components
Complete system includes main machine body, welding transformer, pneumatic drive device, upper and lower electrodes, automatic wire filling device, electrical control system, cooling system, and PLC operation control system.
HWASHI Automatic Gantry Style Wire Mesh Welding Machine with 10 Welding Heads 40000A Output Current and Automatic Wire Filling System 0 HWASHI Automatic Gantry Style Wire Mesh Welding Machine with 10 Welding Heads 40000A Output Current and Automatic Wire Filling System 1
Intelligent Welding Control System
Automated welding operation by inputting coordinate data of welding positions, welding current, and other parameters for precise control.
HWASHI Automatic Gantry Style Wire Mesh Welding Machine with 10 Welding Heads 40000A Output Current and Automatic Wire Filling System 2
Custom Welding Heads and Fixtures
Precision processing and design according to specific wire shelf product drawings with customization options available.
HWASHI Automatic Gantry Style Wire Mesh Welding Machine with 10 Welding Heads 40000A Output Current and Automatic Wire Filling System 3
Automatic Wire Filling System
Simply place precut straight wires into the hopper, and the system automatically fills wires into the fixture, significantly increasing working efficiency and reducing labor requirements.
HWASHI Automatic Gantry Style Wire Mesh Welding Machine with 10 Welding Heads 40000A Output Current and Automatic Wire Filling System 4
Automatic Double-layer Feeder
Simultaneous operation capability: while one fixture undergoes welding, the wire filling system loads wires onto the other fixture. Automatic fixture exchange upon welding completion maximizes production efficiency.
HWASHI Automatic Gantry Style Wire Mesh Welding Machine with 10 Welding Heads 40000A Output Current and Automatic Wire Filling System 5 HWASHI Automatic Gantry Style Wire Mesh Welding Machine with 10 Welding Heads 40000A Output Current and Automatic Wire Filling System 6
Complete Production Line Solutions
Wire Flattening and Cutting Machine
Processes round wire into flat wire with automatic feeding and cutting to required lengths. Typically processes 8mm wire coil into 12x3mm flat wire strips.
High Speed Wire Straightening and Cutting Machine
Batch production for 2mm to 4mm wires with speed approximately 5 times faster than conventional wire cutting machines, increasing production rates and reducing labor costs.
Wire Frame Bending Machine
Bends flat or round wires into square-shaped wire frames with capability to bend multiple wires simultaneously for increased production rates.
Wire Frame Butt Welding Machine
Configurable welding heads based on mesh welding width with independent programming and current settings for each welding head.
Wire Frame Double T-Butt Machine
Welds cross bars to wire frames with double-head design for increased production rates. Optional automatic moving and welding applications available.
Wire Edge Trimming Machine
Trims wire edges from wire frames after welding to create clean, smooth surfaces on finished products.
2D Wire Handle Bending Machine
Bends wire handles for 2-6mm wires without mold changes, capable of creating any 2D wire shape with precision.
3D Wire Bending Machine
Creates complex 3D wire shapes for 2-6mm or 3-8mm wires without requiring mold changes for different designs.
